COOL Tenter frame sun blind

  • Complete DIY kit made of extruded, powder-coated aluminium profiles
  • High-quality fibreglass fabric reduces sun exposure and interior heat-up
  • Drill-less installation by means of height-adjustable stainless steel suspension springs
  • (blind frame thickness: 5 - 35 mm)
  • Elegantly designed internal aluminium corners allow mitre-cut profiles to be connected and
  • ensure maximum stability (accessory Z8)
  • Suitable for all window types, even with weather boarding on blind frame
  • with sealing brush at window frame, all-round for continuous protection
  • Frame size individually adjustable
  • Space requirement (installation depth): 14 mm
Variants
Art-Nr. Title View variant
03284 COOL frame window 100x120cm, white View
03285 COOL frame window 100x120cm, anthracite View
03286 COOL frame window 140x150cm, white View
03287 COOL frame window 140x150cm, anthracite View

Reliable protection for your home against sun and insects

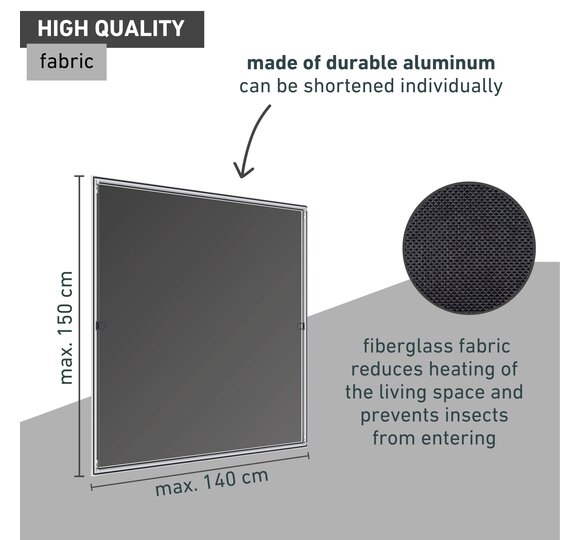

With the sun protection frame window, you can reliably keep sun's rays and mosquitoes away from your home! The drill-free attachment with stainless steel hook-in springs is perfect for rented flats, but also for those who do not want to damage the window frame. The resistant fibreglass flyscreen fabric performs well for many summers; it reduces the heating of the interior and keeps insects out.



The aluminium tension frame is easy to assemble, can be individually shortened to your window size and is suitable for all common window types.

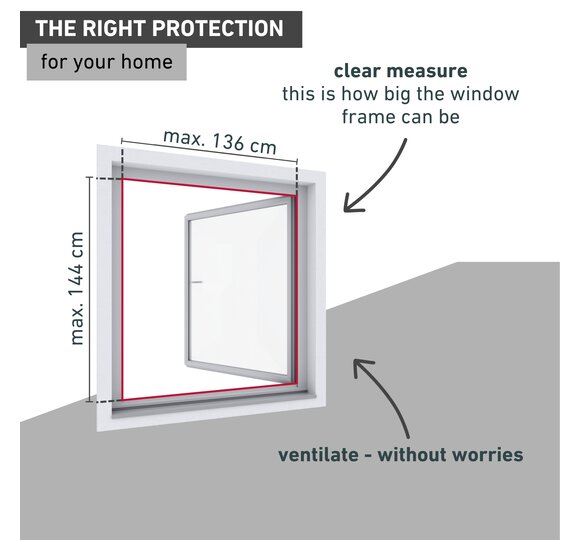

Dimensions
Max. clearance height 144 cm
Max. clearance width 136 cm
Installation depth 14 mm
Profile cross-section height 11.5 mm
Profile cross-section width 30 mm
Profile
Profile material Aluminium
Profile colour white (RAL 9016)
Colour surface mat
Mesh
Fabric colour black
Fabric material Fibreglass
Mesh height in mm 0.8
Mesh width in mm 0.8
Assembly
Customizable size Yes
Mounting type drill-free with suspension springs
Suitable for window with rain guard , offset window , window without rain guard , flush-mounted window
Required tools pencil, file, mitre box, tape measure, metal saw, pair of scissors, tongs, cutter, Phillips screwdriver
Maintenance
Washable Yes
UV-resistant Yes
Products

Are you interested in Sun protection COOL?

The sun protection fabric from the Windhager COOL series not only offers effective protection from the sun, but also keeps annoying insects at bay. This innovative solution combines two important functions in one product, making it an ideal addition to any home. Thanks to the specially processed fibreglass fabric, excessive heating of the interior is effectively prevented, ensuring a pleasant indoor climate even on hot summer days.

One of the outstanding features of the Windhager COOL sun protection fabric is its versatility. It can be seamlessly incorporated into a fly screen frame or alternatively attached directly to the window frame using fixing clips. This flexibility makes installation quick and easy, so you can immediately reap the benefits of a protected and cooler living space.
