COOL Suspended sun blind
- Complete DIY kit made of extruded, powder-coated aluminium profiles

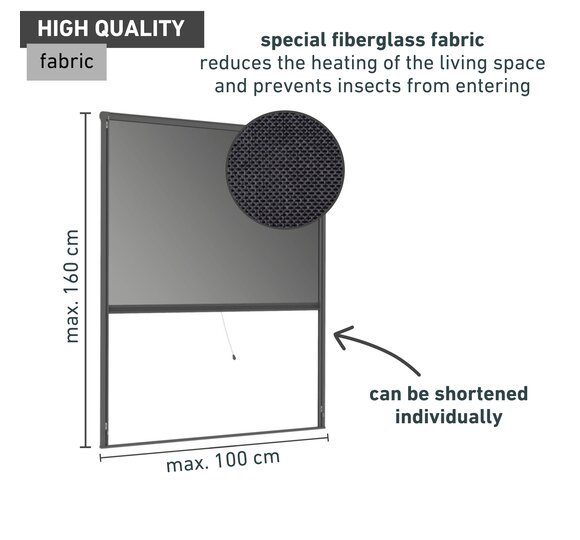

- Special fibreglass fabric reduces sun exposure and interior heat-up

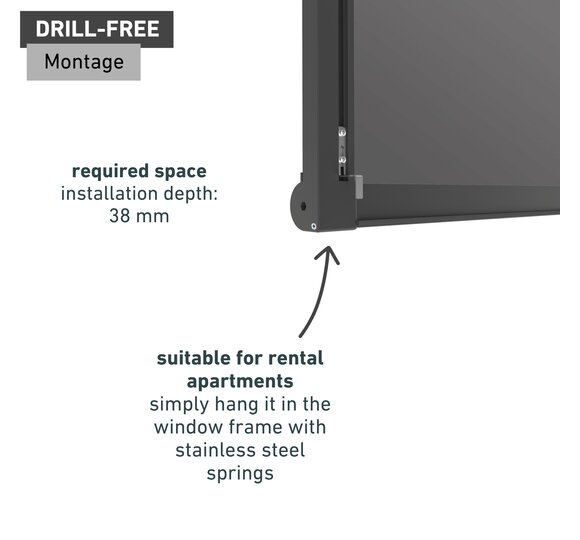

- Drill-less, clamp-less installation by means of adjustable suspension springs
- incl. practical bending template

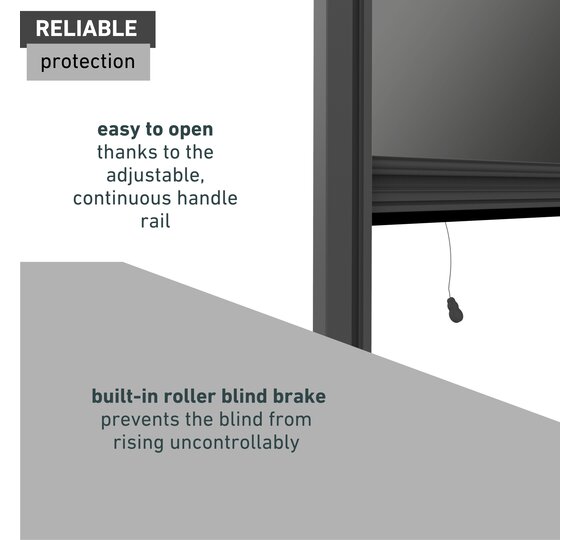

- Integrated roller blind brake prevents uncontrolled recoil of fabric
- Height-adjustable handle rail for comfortable operation
- Two sealing brushes for all-round protection even in strong wind
- Frame size can be adjusted to fit
- Space requirement (installation depth): 38 mm
A mosquito-free home in sight
The new type of sun protection roller window for hanging combines the advantages of a roller blind with those of a frame window. At the same time, thanks to the special fabric, it offers a double protective function: against insects and heat.

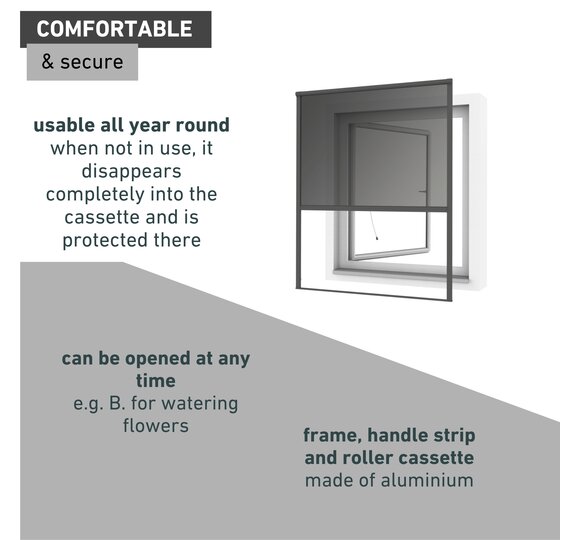

The frame made of powder-coated aluminium profiles is hooked into the window frame by means of adjustable hook-in springs - completely drill-free. The narrow cassette contains the robust fibreglass fabric, which can be conveniently operated with the help of the height-adjustable handle rail. An integrated roller brake prevents the fabric from buckling back in an uncontrolled manner. Two sealing brushes provide all-round protection against insects and in strong winds. The frame can be shortened individually.

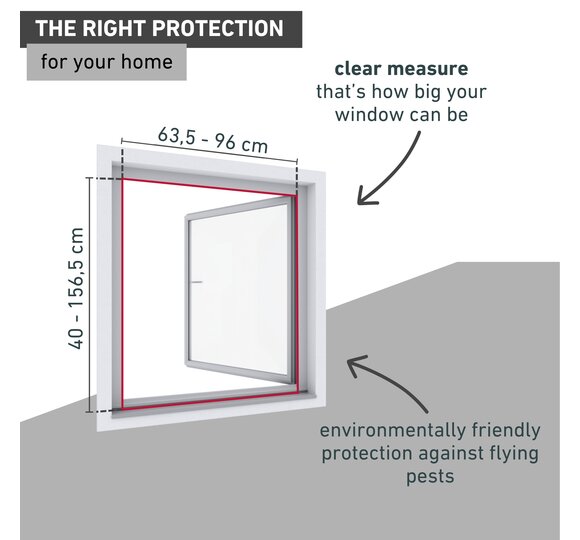

| Min. clearance height | 40 cm |
| Min. clearance width | 63.5 cm |
| Max. clearance height | 156.5 cm |
| Max. clearance width | 96 cm |
| Installation depth | 38 mm |
| Profile cross-section height | 33.7 mm |
| Profile cross-section width | 33.6 mm |
| Profile material | Aluminium |
| Profile colour | anthracite (RAL 7016) |
| Colour surface | mat |
| Fabric colour | black |
| Fabric material | Fibreglass |
| Mesh height in mm | 0.8 |
| Mesh width in mm | 0.8 |
| Customizable size | Yes |
| Mounting type | drill-free with suspension springs |
| Suitable for | window with rain guard , offset window , window without rain guard , flush-mounted window |
| Required tools | pencil, file, mitre box, tape measure, metal saw, Phillips screwdriver, rubber mallet |
| Washable | Yes |
| UV-resistant | Yes |
Are you interested in Sun protection COOL?
The sun protection fabric from the Windhager COOL series not only offers effective protection from the sun, but also keeps annoying insects at bay. This innovative solution combines two important functions in one product, making it an ideal addition to any home. Thanks to the specially processed fibreglass fabric, excessive heating of the interior is effectively prevented, ensuring a pleasant indoor climate even on hot summer days.
One of the outstanding features of the Windhager COOL sun protection fabric is its versatility. It can be seamlessly incorporated into a fly screen frame or alternatively attached directly to the window frame using fixing clips. This flexibility makes installation quick and easy, so you can immediately reap the benefits of a protected and cooler living space.
