PLUS Suspended roller blind

  • Complete DIY kit made of extruded, powder-coated aluminium profiles
  • Fibreglass fly screen fabric, completely weather- and tear-proof
  • Drill-less, clamp-less installation by means of adjustable suspension spring incl. practical bending template
  • Integrated roller blind brake prevents uncontrolled recoil of fabric
  • Height-adjustable handle rail for comfortable operation
  • Two sealing brushes for all-round protection even in strong wind
  • Frame size can be adjusted to fit
  • Space requirement (installation depth): 38 mm
Variants
Art-Nr. Title View variant
03293 PLUS suspended roller blind 100x160, w. View
03294 PLUS suspended roller blind 100x160, a. View
03295 PLUS suspended roller blind 130x160, w. View
03296 PLUS suspended roller blind 130x160, a. View

Fly screen roller window for drill-free mounting

Convenient and environmentally friendly protection against flying pests

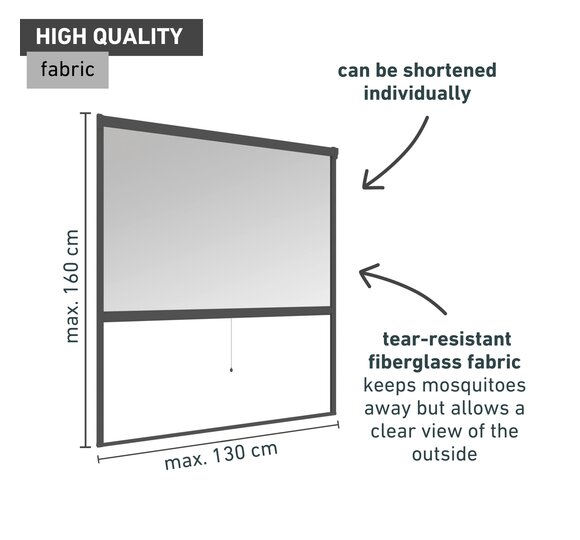

The Windhager insect screen roller window for hanging combines the advantages of a roller blind with those of a frame window. The frame made of powder-coated aluminium profiles is hooked into the window frame by means of adjustable hook-in springs. Completely drill-free. The narrow cassette contains the robust fibreglass fabric, which can be conveniently operated using the height-adjustable handle rail. An integrated roller brake prevents the fabric from buckling back in an uncontrolled manner. Two sealing brushes provide all-round protection against insects and during strong winds. The frame size can be shortened individually.

INSTALLATION Suspended window blinds PLUS 130x160cm
Open and download

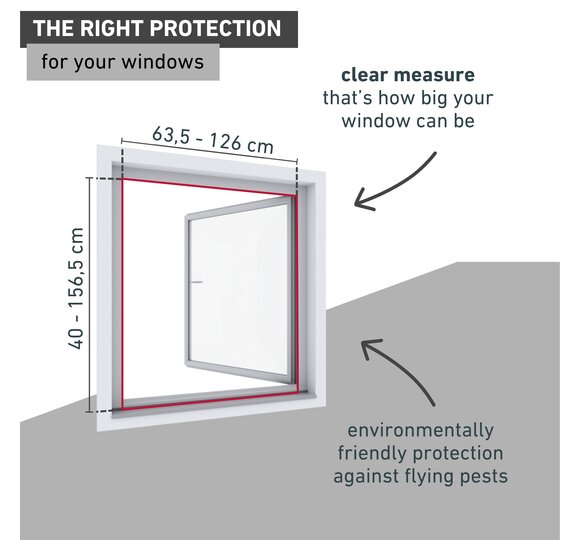

Dimensions
Min. clearance height 40 cm
Min. clearance width 63.5 cm
Max. clearance height 156.5 cm
Max. clearance width 126 cm
Installation depth 38 mm
Profile cross-section height 33.7 mm
Profile cross-section width 33.6 mm
Profile
Profile material Aluminium
Profile colour anthracite (RAL 7016)
Colour surface mat
Mesh
Fabric colour black
Fabric material Fibreglass
Mesh height in mm 1.5
Mesh width in mm 1.2
Assembly
Customizable size Yes
Mounting type drill-free with suspension springs
Suitable for flush-mounted window , offset window , window without rain guard , window with rain guard
Required tools pencil, file, mitre box, tape measure, metal saw, Phillips screwdriver, rubber mallet
Maintenance
Washable Yes
UV-resistant Yes
Products

Are you interested in Roller blind?

These innovative products not only offer reliable protection against insects, but also blend harmoniously into the appearance of your home. Thanks to the no-drill installation option, the roller insect screen can be installed quickly and without damaging the fabric of the building, making it the perfect choice for tenants and homeowners.

Our roller blind flyscreens are also available with sun protection fabric, which offers double benefits: Not only does it keep pesky insects out, but it also reduces solar radiation, helping to keep your rooms pleasantly cool on hot days. The easy handling makes it possible to open and close the roller blind quickly so that you can react flexibly to changing needs.

A special feature is the roller blind cassette, in which the insect screen fabric disappears safely and securely when not in use. This not only ensures a longer service life for the product, but also keeps the design of your window elegant and inconspicious.
